Side Lay / Guide Block (DS) SM72/102 and S Series Compatible with Heidelberg – 66.072.202
- Low stock: 5 left
-
Local pickup in Toronto and Florida
Collect your order from our Toronto, ON or DeBary, FL warehouse.
-
50+ years supplying the print industry
Trusted by print shops worldwide since 1972.
-
Beware of inferior-quality parts
We source only top-quality parts, never low-grade replicas, for a precise fit and a long service life.
-
30-day warranty
Every part is covered for 30 days from purchase, with our money-back guarantee.
Fits these presses
- Heidelberg SM 72
- Heidelberg SM 102
Not sure of your unit or serial range? Send us a photo and our technicians will confirm the part number.
Description

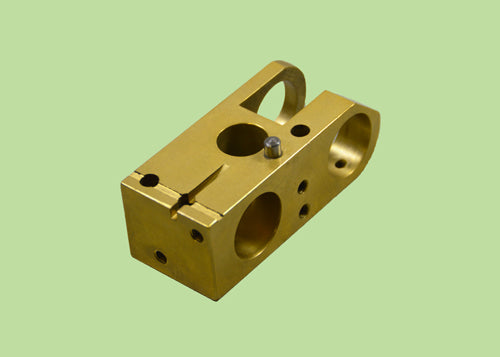

Side Lay / Guide Block (DS) SM72/102 and S Series Compatible with Heidelberg - 66.072.202
The side lay guide block (DS) ensures precise sheet alignment for SM72, SM102, and S Series presses. It accurately positions sheets against the side lay during feeding to maintain consistent registration and smooth handling. The durable construction withstands repeated mechanical stress and continuous production cycles. Its precision design allows quick installation as a direct replacement without adjustments. The guide block supports reliable sheet positioning, reduces misfeeds, and ensures consistent print quality across various paper stocks. Use this component to improve feeder performance and enhance overall press efficiency in demanding printing environments.
Product Features
- Compatible with SM72, SM102, and S Series offset presses.
- Provides accurate side registration and sheet alignment.
- Durable construction resists wear from repeated contact.
- Ensures smooth sheet handling during feeding operations.
- Direct replacement for fast and simple installation.
- Maintains consistent performance across different paper types.
- Ideal for maintenance and restoration of feeder assemblies.
- REF: 66.072.202
- SKU: PRI030HE66072202
