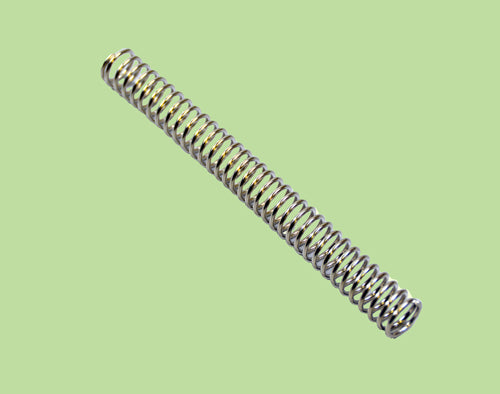

Spring Side Lay Assembly Board Long Compatible with Heidelberg – HE.22304
-
Local pickup in Toronto and Florida
Collect your order from our Toronto, ON or DeBary, FL warehouse.
-
50+ years supplying the print industry
Trusted by print shops worldwide since 1972.
-
Beware of inferior-quality parts
We source only top-quality parts, never low-grade replicas, for a precise fit and a long service life.
-
30-day warranty
Every part is covered for 30 days from purchase, with our money-back guarantee.
Description
Spring Side Lay Assembly Board Long Compatible with Heidelberg - HE.22304
Maintain precise sheet positioning with a spring side lay assembly board designed. This long-format component supports accurate lateral sheet alignment during feeding operations. It helps guide paper into consistent position for improved registration and smooth printing performance. Built with durable materials, it withstands continuous mechanical stress in demanding production environments. Its precision design ensures proper fitment and reliable integration with compatible assemblies. This part supports maintenance, repair, and replacement needs in offset printing workflows. It is a practical solution for restoring side lay function and improving sheet control accuracy.
Product Features
- Designed for Heidelberg press compatibility
- Supports accurate lateral sheet alignment
- Helps improve feeding consistency
- Durable construction for long service life
- Precision-made for reliable fitment
- Suitable for maintenance and replacement tasks
- Supports stable sheet positioning
- REF: HE.22304
- SKU: PRI03022304
