Ink Key Motor 24 Volt Compatible with Heidelberg – 61.186.5411/03
-
Local pickup in Toronto and Florida
Collect your order from our Toronto, ON or DeBary, FL warehouse.
-
50+ years supplying the print industry
Trusted by print shops worldwide since 1972.
-
Beware of inferior-quality parts
We source only top-quality parts, never low-grade replicas, for a precise fit and a long service life.
-
30-day warranty
Every part is covered for 30 days from purchase, with our money-back guarantee.
Description

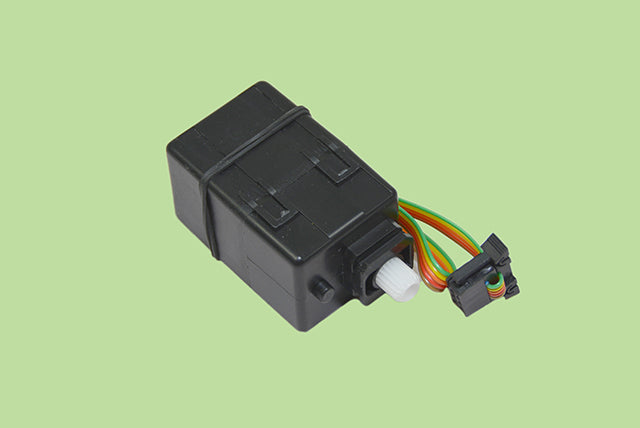

Ink Key Motor 24 Volt Compatible with Heidelberg - 61.186.5411/03
The Ink Key Motor 24 Volt Compatible with Heidelberg (61.186.5411/03, HE-61-186-5411) drives accurate ink metering across Heidelberg CPC remote ink control systems.
This 24V DC geared motor (Type 3050L024S) matches original factory performance standards. It drives the ink duct key slides with precise, repeatable movement. Press operators can adjust ink smoothly from the central console.
This replacement unit fits several Heidelberg sheetfed presses, including the Speedmaster SM 52, SM 74, SM 102, CD 102, XL 75, PM 52, PM 74, MO, and GTO series. It helps resolve sticking ink keys, calibration drift, and console communication errors. This helps restore ink-water balance and reduce costly press downtime.
Product Features
- Fully compatible with Heidelberg Speedmaster SM 52, SM 74, SM 102, CD 102, XL 75, Printmaster PM 52, PM 74, as well as MO and GTO models equipped with CPC ink control consoles.
- Old-Style vs. New-Style Upgrade:
- Old-Style Motors (12V / 61.186.5311 and 71.186.5311 Series): These 12V motors generated more heat during continuous operation. They delivered less torque against stiff ink film. Their brushes and potentiometers also wore faster during long production runs.
- New-Style Motors (24V / 61.186.5411 Series): The upgraded 24V geared motor (3050L024S) delivers high torque with lower current draw. It improves heat dissipation and provides smoother rotation. These features help prevent ink key binding at high press speeds.
- Heat-treated internal gears convert high-speed motor rotation into smooth, low-vibration torque. This helps move stiff or UV inks.
- Features factory-correct mounting dimensions and electrical quick-connect terminal leads for fast, seamless bench or press-side replacement.
- Eliminates color variation across printing zones by ensuring rapid, friction-free movement of ink blade keys during automatic color profile adjustments.
- Direct replacement for Heidelberg part numbers 61.186.5411/03, 61.186.5411, and HE-61-186-5411.
- REF: 61.186.5411/03
- SKU: PRI03061186541103
