Description

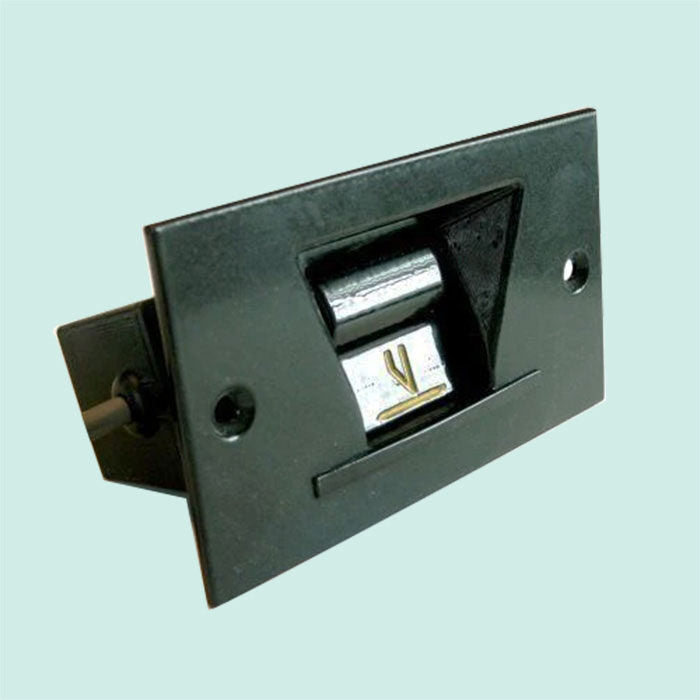

Polar Cut Switch / Cutting Releaser Unit
This cut button or switch mounts on the front table of all Polar N, N+, N PRO HD, and N AT HD paper cutters. It replaces Polar part number 064815 or ZA3.064815.
The Polar Cut Switch ZA3.064815 is an aftermarket part that directly replaces the original switch. Its four gold-plated connector pins provide long life. The switch and cable come pre-wired for quick and easy installation. Inside, it uses an Eaton M22 modular switch assembly.
The back cover uses screws instead of glue, allowing easy access to the internal switch parts when needed.
The front of the switch assembly measures 126 mm (4-15/16") wide and 75 mm (2-15/16") tall. The 5 mm mounting holes on the face are spaced 105 mm (4-1/8") apart.
Product Features:
- Provides accurate control of cutting operations
- Ensures safe and reliable blade release function
- Compatible with Polar cutting machines
- Features durable construction for long-term use
- Allows easy installation and quick replacement
- Reduces machine downtime and improves productivity
- Supports consistent cutting precision and safety
- Designed for heavy-duty pressroom conditions
- Ref: ZA3.064815
- PRI030064815
