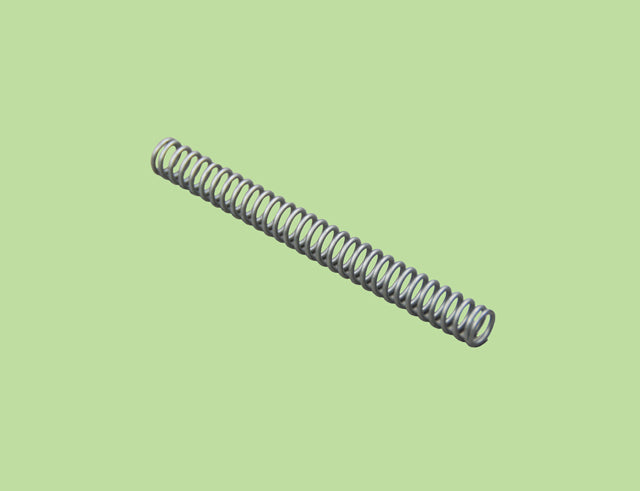

Spring Side Lay for SM72 / 102 / M & S Series HE-66-072-221
-
Local pickup in Toronto and Florida
Collect your order from our Toronto, ON or DeBary, FL warehouse.
-
50+ years supplying the print industry
Trusted by print shops worldwide since 1972.
-
Beware of inferior-quality parts
We source only top-quality parts, never low-grade replicas, for a precise fit and a long service life.
-
30-day warranty
Every part is covered for 30 days from purchase, with our money-back guarantee.
Fits these presses
- Heidelberg SM 72
- Heidelberg SM 102
Not sure of your unit or serial range? Send us a photo and our technicians will confirm the part number.
Description
Spring Side Lay for SM72 / 102 / M & S Series HE-66-072-221
The Spring Side Lay HE-66-072-221 supports precise sheet positioning in SM72, SM102, M, and S Series presses. This component provides controlled lateral pressure to hold sheets firmly against the side lay during feeding and printing. Operators rely on it to maintain accurate sheet registration and reduce misfeeds. Print shops use it to improve alignment consistency and overall print quality. The spring absorbs mechanical stress while ensuring smooth operation. Maintenance teams install it easily as a direct replacement component. It helps presses operate reliably during high-speed production. The durable design resists fatigue and maintains stable performance over time. Printers choose this spring side lay to reduce downtime and maintain dependable sheet handling.
Product Features:
- Compatible with SM72, SM102, M & S Series Heidelberg presses
- Provides controlled lateral pressure for accurate sheet positioning
- Helps reduce misfeeds and maintain registration consistency
- Durable spring design resists fatigue under continuous use
- Precision-fit component for easy installation
- HE-72319-P
