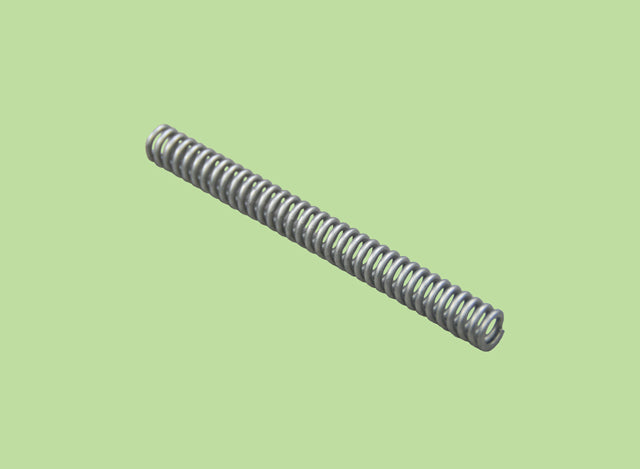

Spring Side Lay for SM72 / 102 / M & S Series HE-66-072-222
-
Local pickup in Toronto and Florida
Collect your order from our Toronto, ON or DeBary, FL warehouse.
-
50+ years supplying the print industry
Trusted by print shops worldwide since 1972.
-
Beware of inferior-quality parts
We source only top-quality parts, never low-grade replicas, for a precise fit and a long service life.
-
30-day warranty
Every part is covered for 30 days from purchase, with our money-back guarantee.
Fits these presses
- Heidelberg SM 72
- Heidelberg SM 102
Not sure of your unit or serial range? Send us a photo and our technicians will confirm the part number.
Description
Spring Side Lay for SM72 / 102 / M & S Series HE-66-072-222
Ensure precise sheet alignment with the Spring Side Lay for SM72, 102, and M & S Series presses. This replacement spring supports the side lay mechanism to maintain consistent paper positioning during printing. It delivers reliable tension and stability for accurate sheet registration. The durable construction withstands repeated use in high-volume production environments. You can install this spring quickly to restore proper side lay function and maintain smooth press operation. This component helps reduce misfeeds, improve print accuracy, and support efficient workflow. Choose this high-quality spring to keep your press performing reliably in commercial and industrial printing settings.
Product Features
- Designed for SM72, 102, and M & S Series presses
- Provides consistent side lay tension
- Supports accurate sheet alignment
- Durable construction for long service life
- Withstands continuous production use
- Easy installation and replacement
- Reduces misfeeds and improves print accuracy
- HE-72319-C
