Description

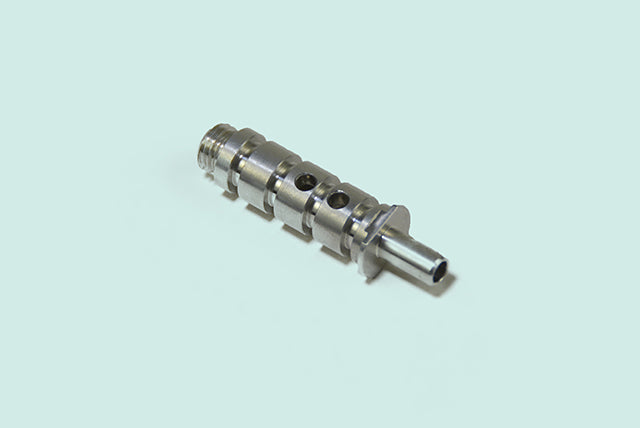

Suction Guide (HE-A1-016-312)
The Heidelberg Suction Guide HE-A1-016-312 supports precise sheet handling within Heidelberg press feeding systems. It directs suction flow to stabilize sheet pickup during operation. The guide helps maintain consistent sheet separation for smooth feeding performance. It fits designated Heidelberg assemblies for accurate installation and reliable function. Its durable construction withstands continuous air suction and industrial printing conditions. The design supports stable airflow distribution across feeding components. It helps improve sheet control during high-speed production cycles. The component integrates easily into maintenance and replacement procedures. It supports consistent feeding accuracy in demanding press environments.
Product Features
- Directs suction flow for controlled sheet pickup.
- Supports stable sheet separation during operation.
- Designed for Heidelberg OEM compatibility.
- Maintains consistent feeding performance in systems.
- Withstands continuous industrial air suction use.
- Ensures accurate installation in press assemblies.
- Enhances sheet handling stability during production.
- Suitable for replacement and repair use.
- Ref: HE-A1-016-312
- PRI030A1016312
